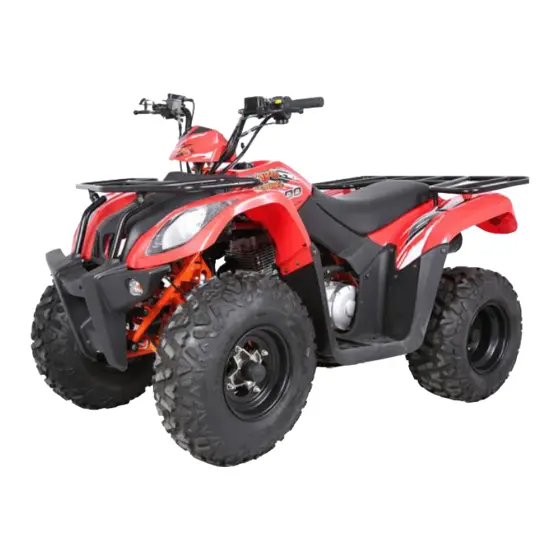

The Kayo AU200 is a versatile utility ATV designed for both work and recreational use.
| Specification |
Details |
| Engine Type |
4-stroke,
SOHC, air-cooled |
| Displacement |
176.0
cc |
| Bore x Stroke |
62.0
mm x 58.4 mm |
| Compression Ratio |
9.7:1 |
| Fuel System |
Carburetor |
| Maximum Power |
9.0
kW @ 8,000 rpm |
| Maximum Torque |
13.0
N⋅m @ 6,000 rpm |
| Ignition |
CDI |
| Starting Method |
Electric |
| Transmission |
CVT
with Reverse, Neutral, and Forward gears |
| Final Drive |
2WD,
Chain |
| Front Suspension |
260
mm non-adjustable |
| Rear Suspension |
310
mm adjustable |
| Front Brakes |
Hydraulic
disc |
| Rear Brakes |
Hydraulic
disc |
| Tires |
Front:
10", Rear: 10" |
| Dimensions (L x W x H) |
1,780
mm x 955 mm x 1,050 mm |
| Seat Height |
805
mm |
| Ground Clearance |
130
mm |
| Wheelbase |
1,150
mm |
| Dry Weight |
168.0
kg |
| Fuel Capacity |
9.0
liters |
| Top speed |
85 km/h |
The Kayo AU200 is equipped with a reliable 176 cc engine and a CVT transmission, providing smooth power delivery suitable for various tasks. Its sturdy construction, combined with adjustable rear suspension and hydraulic disc brakes, ensures a comfortable and controlled ride across different terrains. With a generous fuel tank capacity and practical features, the AU200 is designed to make demanding tasks more manageable.
