| Specification |
Details |
| Engine Type |
SOHC
4-stroke, air-cooled |
| Displacement |
86
cc |
| Ignition |
CDI |
| Starting System |
Electric
and kick start |
| Transmission |
Semi-automatic,
4-speed |
| Final Drive |
Chain |
| Front Suspension |
Conventional
forks |
| Rear Suspension |
Single
shock |
| Front Brake |
Hydraulic
disc |
| Rear Brake |
Hydraulic
disc |
| Front Tire |
2.50/12
inches |
| Rear Tire |
3.00/10
inches |
| Dimensions (L x W x H) |
58
x 26.3 x 35 inches |
| Seat Height |
24.6
inches |
| Wheelbase |
41.5
inches |
| Ground Clearance |
7
inches |
| Fuel Capacity |
0.92
gallons |
| Weight |
123.5
lbs |

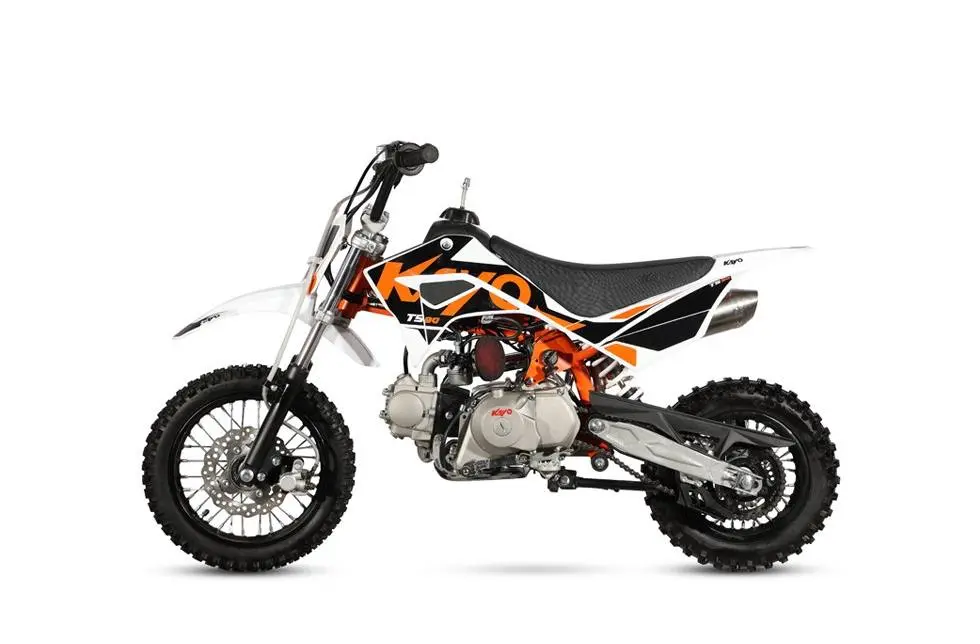

The TS90 features a reliable 86 cc air-cooled engine paired with a semi-automatic 4-speed transmission, making it user-friendly for novice riders. The inclusion of both electric and kick start options ensures ease of use in various situations. With a low seat height of 24.6 inches and a lightweight frame, the TS90 offers excellent maneuverability and control, suitable for young enthusiasts venturing into off-road riding. The bike is equipped with hydraulic disc brakes on both front and rear, providing reliable stopping power. Its suspension setup, comprising conventional front forks and a rear single shock, ensures a comfortable ride over diverse terrains.
