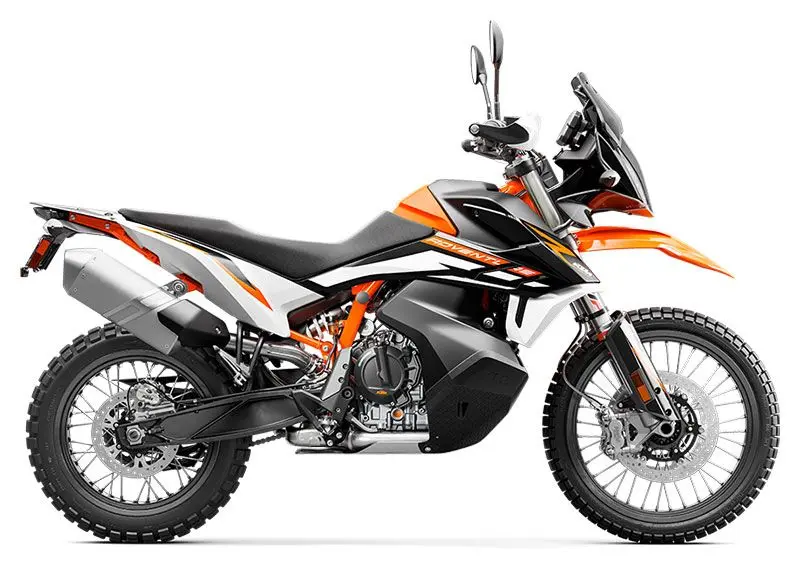

The 2022 KTM 890 Adventure R is a versatile adventure motorcycle designed for both on-road comfort and off-road capability.
| Specification |
Details |
| Engine Type |
2-cylinder,
4-stroke, parallel twin |
| Displacement |
889
cc |
| Bore x Stroke |
90.7
mm x 68.8 mm |
| Compression Ratio |
13.5:1 |
| Maximum Power |
105
HP (77 kW) @ 8,000 RPM |
| Maximum Torque |
100
Nm @ 6,500 RPM |
| Fuel System |
Bosch
Electronic Fuel Injection (EFI) with 46 mm throttle body |
| Ignition |
Bosch
EMS with Ride-by-Wire |
| Starter |
Electric |
| Transmission |
6-speed
manual |
| Clutch |
PASC™
antihopping clutch, mechanically operated |
| Final Drive |
Chain
520 X-Ring |
| Frame |
Chromium-Molybdenum-Steel
frame using the engine as a stressed member |
| Front Suspension |
WP
APEX 43 mm upside-down fork |
| Rear Suspension |
WP
APEX Monoshock |
| Front Brake |
Dual
320 mm discs with radial fixed 4-piston calipers |
| Rear Brake |
Single
260 mm disc with 2-piston floating caliper |
| Front Tire |
90/90
R21 |
| Rear Tire |
150/70
R18 |
| Wheelbase |
1,528
mm |
| Seat Height |
880
mm |
| Ground Clearance |
263
mm |
| Dry Weight |
196
kg |
| Fuel Tank Capacity |
20
liters |
