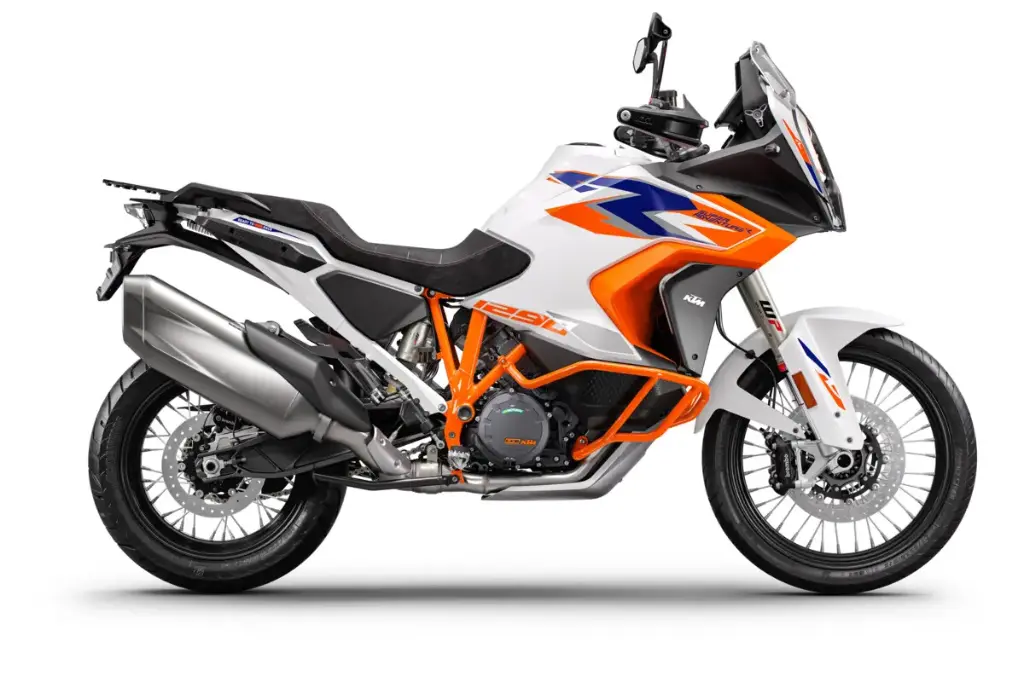

The KTM 1290 Super Adventure R is a high-performance adventure motorcycle engineered for riders seeking exceptional off-road capabilities combined with long-distance touring comfort.
| Specification |
Details |
| Engine Type |
Liquid-cooled,
75° V-twin, 4-stroke, DOHC |
| Displacement |
1,301
cc |
| Bore x Stroke |
108
mm x 71 mm |
| Compression Ratio |
13.1:1 |
| Maximum Power |
160
hp (118 kW) |
| Maximum Torque |
138
Nm |
| Fuel System |
Keihin
Electronic Fuel Injection (EFI) with 56 mm throttle bodies |
| Ignition |
Keihin
EMS with Ride-by-Wire |
| Starter |
Electric |
| Transmission |
6-speed
manual |
| Clutch |
PASC
slipper clutch, hydraulically actuated |
| Final Drive |
Chain
525 X-Ring |
| Frame |
Chrome-moly
tubular space frame |
| Front Suspension |
WP
XPLOR 48 mm upside-down fork, fully adjustable |
| Rear Suspension |
WP
XPLOR PDS monoshock, fully adjustable |
| Front Brake |
Dual
320 mm discs with radial-mounted 4-piston calipers |
| Rear Brake |
Single
267 mm disc with 2-piston caliper |
| Front Tire |
90/90
R21 |
| Rear Tire |
150/70
R18 |
| Wheelbase |
1,580
mm |
| Seat Height |
880
mm |
| Ground Clearance |
220
mm |
| Fuel Tank Capacity |
23
liters |
| Dry Weight |
220
kg |
